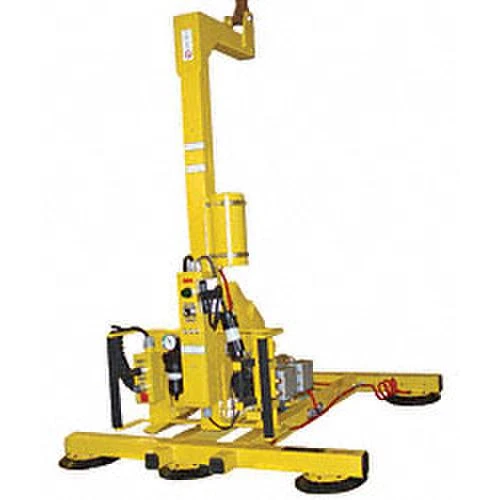

CRL CFPT69AC Wood’s Powr-Grip AC Powered C-Frame Power Tilter 6-Cup Vacuum Lifter 750 Series

CRL Wood’s Powr-Grip® C-Frame Power Tilters help increase profits by quickly transferring glass directly into and out of the shipping case. Removal of the front of the case, as opposed to the end, keeps the case intact for reuse. This saves time, money and resources by reducing the time and manpower in involved in rebuilding old cases or making new ones. These industrial grade Vacuum Lifters are rugged, fast-acting units, designed for long service in production line operations. A minimum 14-1/2″ (136 mm) throat depth allows C-Frame Vacuum Lifters to extend to the back of most shipping cases.
Standard Pad Spread:
CAT. NO. CFPT49AC: 33″ x 39″ (838 x 991 mm)
CAT. NO. CFPT69AC: 33″ x 59″ (838 x 1499 mm)
Lifting Capacity:
CAT. NO. CFPT49AC: 500 Lbs. (227 kg)
CAT. NO. CFPT69AC: 750 Lbs. (340 kg)
Unit Weight:
CAT. NO. CFPT49AC: 151 Lbs. (69 kg)
CAT. NO. CFPT69AC: 240 Lbs. (109 kg)
Standard Operating Power: 120V AC, 60 Hz, 12 AMP (240V AC, 60 Hz, 6 AMP also available)
Apply/Release:
CAT. NO. CFPT49AC: 1 sec./1 sec. (approx)
CAT. NO. CFPT69AC: 2 sec./2 sec. (approx)
Load Movement: Power tilt, 90º between upright and flat.
Time For 90º Tilt: 7 sec. (approx)
Tilt Duty: 81 Tilts Per Hour
Standard Throat Depth: 18-3/4″ (476 mm)
Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Available Options:

DC Power Systems:CAT. NO. CFPT49DCS or CAT. NO. CFPT69DCS

Vacuum Loss Warning Buzzer: CAT. NO. E03VLW

12V DC Vacuum Back-up System:CAT. NO. E01DCB

Individual Pad Shutoffs: CAT. NO. CM1C0WB

Telescoping Pad Arms: CAT. NO. CF3TA0

Movable Pad Mounts: CAT. NO. CM2SCM

Voltage Adaptation: CAT. NO. E06VA
