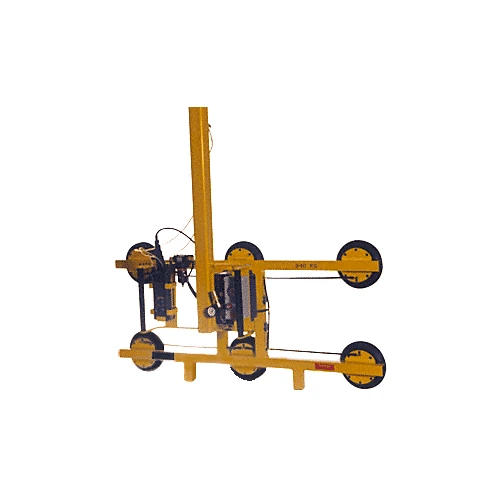

CRL CFVL49ACS Wood’s Powr-Grip AC Powered C-Frame Vertical Lifter 4-Cup Vacuum Lifter 500 Series

Original price was: $319.00.Current price is: $96.99.

SKU: CFVL49ACS Category: Vacuum Lifters Tag: Wood's Powr-Grip

Worry-Free Shopping with Safe Payments
Secure Shopping with Safe Payments
Unbeatable Quality, Unbeatable Value
Hassle-Free Payments

This CRL Wood’s Powr-Grip® C-Frame Vertical Lifter 500 Series has a unique shape that enables the operator to easily remove glass from shipping crates with the crate’s face removed. Its rugged construction is designed for long service life on high volume production lines.
Standard Pad Spread:
29-1/4″ x 39-1/4″ (743 x 997 mm)
Number/Size of Pads:
CAT. NO. CFVL49ACS 4/9″ (229 mm) Diameter
CAT. NO. CFVL69ACS 6/9″ (229 mm) Diameter
Lifting Capacity:
CAT. NO. CFVL49ACS: 500 Lbs. (227 kg)
CAT. NO. CFVL69ACS: 750 Lbs. (340 kg)
Standard Operating Power:
120V AC, 50/60 Hz, 5 AMP (other voltages available)
Apply/Release:
CAT. NO. CFVL49ACS: 1/1 sec. (approx)
CAT. NO. CFVL69ACS: 2/2 sec. (approx)
Load Movement: Upright to Upright
Standard Throat Depth: 14-1/2″ (368 mm)
Standard Features:
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Green Lift Light
Spring-Mounted Pads
Industrial Grade Switches
Twist-lock Electrical Plug
Blow-off for Quick Release
Alternative Power Systems
DC Power System
(CAT. NOS. CFVL49DCS or CFVL69DCS)
Air (Venturi) Power System
(CAT. NOS. CFVL49A1RS or CFVL69A1RS)
Available Options

Vacuum Loss Warning Buzzer
CAT. NO. E03VLW

12V/DC Vacuum Back-up System
CAT. NO. 01DCB

Individual Pad Shutoffs
CAT. NO. CM1C0WB

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Lift Capacity	500 Lb (228 kg)
Pad Spread Size	30 x 40 in (762 x 1,016 mm)
Load Capacity	500
F.O.B	Laurel, MT.
Vacuum Pad Spread Size	30 x 40 in (762 x 1,016 mm)
Brand	Wood's Powr-Grip
WARNING	This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to http://www.P65Warnings.ca.gov
Pad Quantity	4
