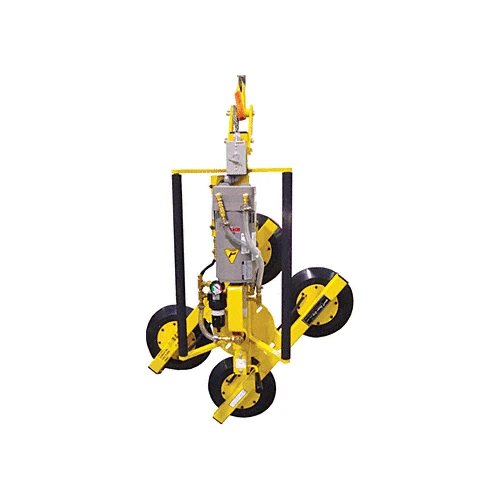

CRL MR411LAC Wood’s Powr-Grip 700 Pound Manual Rotator

This Wood’s 700 Pound Powr-Grip® Manual Rotator is a great choice when you need maximum ease in the manipulation of heavy loads. It combines manual 360 degree rotation, and fast attach/release times, making them ideal on high-output production lines.
Standard Pad Spread:
CAT. NO. MR49AC: 24″ x 30″ (610 x 762 mm)
CAT. NO. MR411LAC: 26″ x 32″ (661 x 813 mm)
CAT. NO. MR4HV11AC: 25″ x 31″ (636 x 788 mm)
Number/Size of Pads:
CAT. NO. MR49AC: 4/9″ (229 mm) Diameter
CAT. NO. MR411LAC: 4/11″ (280 mm) Diameter Lipped
CAT. NO. MR4HV11AC: 4/10″ (254 mm) Diameter Lipped
Lifting Capacity:
CAT. NO. MR49AC: 500 Lbs. (227 kg)
CAT. NO. MR411LAC: 700 Lbs. (318 kg)
CAT. NO. MR4HV11AC: 600 Lbs. (272 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Average Unit Weight: 61 Lbs. (28 kg)
Standard Operating Power: 120V AC, 60 Hz, 5 AMP(100V AC, 60 Hz, 3 AMP and 240V AC, 60 Hz, 2 AMP also available)
Apply/Release Times:
CAT. NO. MR49AC: one sec./one sec. (approx.)
CAT. NO. MR411LAC: two sec./two sec. (approx.)
Load Movement: Manual rotation, 360 degrees edgewise with automatic locking at the quarter points.
Standard Features:
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Available Options:

Air (Venturi) Power System
CAT. NO. MR49A1R
CAT. NO. MR411LA1R
CAT. NO. MR4HV11A1R

Individual Pad Shutoffs
CAT. NO. CM1C0WB

Green Lift Light
CAT. NO. E02GSL

Vacuum Loss Warning Buzzer
CAT. NO. E03VLW

Voltage Adaptation
CAT. NO. E06VA

Closed Cell Foam Pad Rings
CAT. NO. FRHV11 (Available on CAT. NO. MR4HV11AC only)

Linear Pad Frame
CAT. NO. CF8LF0
For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
