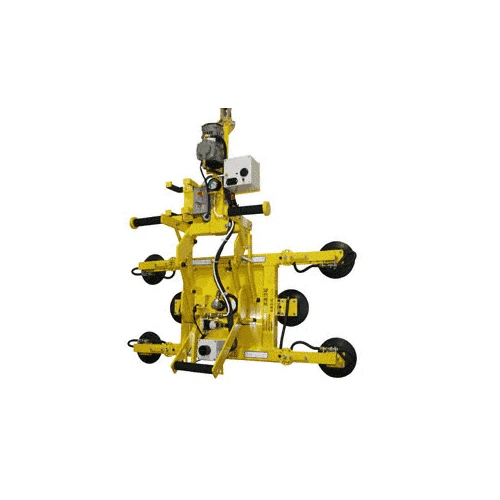

CRL MRTA4LP6FA1RS Wood’s Air Quadra-Tilt Rotator 4 Cup- 200 Lbs.

The Quadra-Tilt Vacuum Lifters feature an innovative four-bar tilt mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks: When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to “kick back” at the operator’s knees. The vacuum lifters also feature 360 degrees manual rotation and multi position vacuum pad arms that accommodate a variety of load sizes and shapes. Holes or defects in the load surface are easily avoided because vacuum pads can attach at virtually any location on the load.
Specifications:
Adjustable Vacuum Pad Spread:
Length: Min: 26-3/4″ (676 mm), Max: 41-1/2″ (1.05 m)
Width: Min: 14-1/2″ (369 mm), Max: 35-1/2″ (902 mm)
Number/Size of Vacuum Pads:
4/6″ (153 mm) diameter vacuum pads
Load Capacity:
200 lbs. (90 kg)
Weight of Vacuum Lifter:
71 lbs. (33 kg)
Standard Operating Power:
120 volts AC, 60 hertz, 3 amps (Other voltages available)
Apply/Release Times:
2 sec./2 sec. (approx.)
Load Movement:
Manual rotation, 360 degrees edgewise, with locking at each quarter point
Assisted manual tilt, 90 degrees between upright and flat
Standard Features:
Vacuum gauge
Vacuum line filter
Movable vacuum pad arms
Spring-mounted vacuum pads
Twist-lock electrical plug
Multiple handles for easy load positioning
Blow-off for quick release
Alternative Power Systems:
DC power system
Air (venturi) power system
(Specifications may not be as listed above. Please contact us for more information.)
Available Options:
G-Force® hoist control
Vacuum loss warning buzzer
2″ (51 mm) vacuum pad spacer
Alternative vacuum pad frame dimensions and capacities
Design Standards:
ASME B30.20-2006
(BTH-1 Design Category “B”, Service Class “0”)
