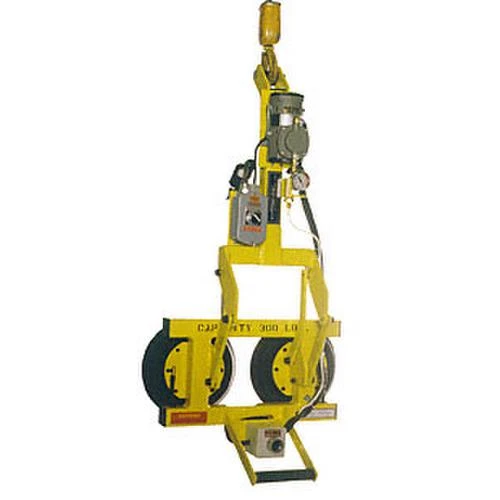

CRL MTA2HV11AC Wood’s Powr-Grip 2 Pad Quadra Tilt Lifter

This CRL Wood’s Powr-Grip® 2 Pad Quadra Tilt Lifter features an innovative four-bar tilt mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks: When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to “kick back” at the operator’s knees. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread: 11″ x 24″ (280 x 610 mm)
Number/Size of Pads: 2/10″ (254 mm) Diameter Lipped
Lifting Capacity: 300 Lbs. (135 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Unit Weight: 45 Lbs. (21 kg)
Standard Operating Power: 120V AC, 60 hertz, 3 AMP (240V AC, 50/60 Hertz, 2 AMP also available)
Apply: 2 sec. Release: 2 sec. (approx.)
Load Movement: Assisted Manual Tilt, 90 Degrees Between Upright and Flat
Standard Features:
Vacuum Gauge
Vacuum Line Filter
Twist-Lock Electrical Plug
Blow-Off for Quick Release
Alternative Power Systems:

DC Power System CAT. NO. MTA2HV11DCS

Air (Venturi) Power System CAT. NO. MTA2HV11A1R
Available Options:

G-Force® Hoist Control CAT. NO. 1H0HGP

Vacuum Loss Warning Buzzer CAT. NO. E03VLW

Closed Cell Foam Pad Rings CAT. NO. FRHV11

Voltage Adaptation CAT. NO. E06VA
