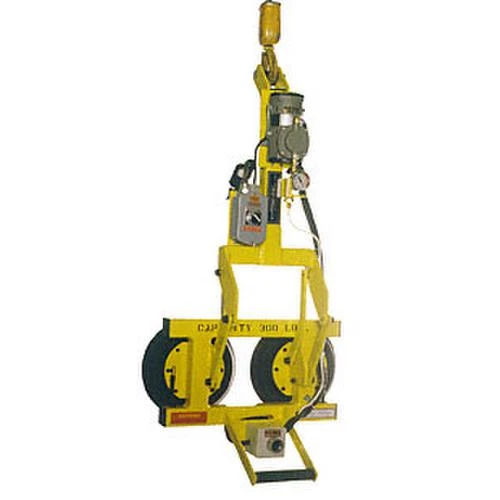

CRL MTA2HV11DCS Wood’s Powr-Grip DC Powered 2 Pad Quadra Tilt Lifter

This CRL Wood’s Powr-Grip® DC Powered 2 Pad Quadra Tilt Lifter features an innovative four-bar tilt mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks: When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to “kick back” at the operator’s knees. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
SPECIFICATIONS:
Standard Vacuum Pad Spread: 11″ x 24″ (279 x 610 mm)
Number/Size of Vacuum Pads: 2/10″ (254 mm) Diameter Lipped Vacuum Pads
Lifting Capacity: 300 pounds (135 kg)
Standard Operating Power:
120 volts AC, 60 hertz, 3 amps
(240 volts AC, 50/60 hertz, 2 amps also available)
Alternative Power Systems:
DC power system (MTA2HV11DCS)
Air (venturi) power system (MTA2HV11A1R)
Apply: 2 sec. Release: 2 sec. (approx.)
Load Movement: Assisted Manual Tilt, 90 degrees between upright and flat
Standard Features:
Vacuum Gauge
Vacuum Line Filter
Twist-Lock Electrical Plug
Blow-Off for Quick Release
Available Options:
G-Force® Hoist Control (Cat. No. 1H0HGP)
Vacuum Loss Warning Buzzer (Cat. No. E03VLW)
Closed Cell Foam Pad Rings (Cat. No. FRHV11)
Voltage Adaptation (Cat. No. E06VA)
