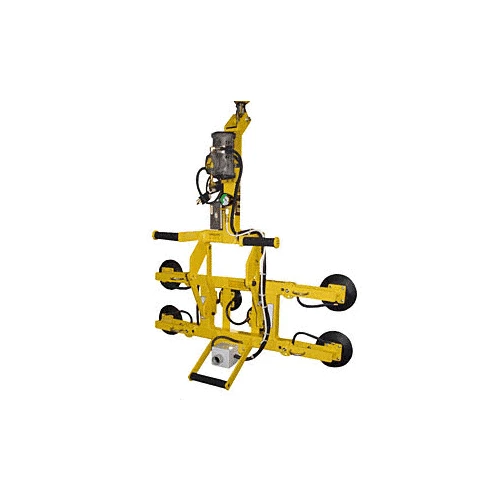

CRL MTA6LP6FA1R Wood’s Powr-Grip Air Powered 6-Pad Quadra-Tilt Lifter 300 Series

The CRL Wood’s Powr-Grip® Air Powered 6-Pad Quadra-Tilt Lifter 300 Series features an innovative four-bar tilt mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks: When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to “kick back” at the operator’s knees. These vacuum lifters also feature multiposition vacuum pad arms that accommodate a variety of load sizes and shapes. Holes or defects in the load surface are easily avoided because vacuum pads can attach to virtually any location on the load. For special sizes and capacities, please contact our DK Hardware Sales.
SPECIFICATIONS:
Adjustable Vacuum Pad Spread:
Length: Min: 13″ (330 mm), Max: 39″ (991 mm)
Width: Min: 9″ (229 mm), Max: 30″ (762 mm)
Number / Size of Vacuum Pads:
6 / 6″ (153 mm) Diameter Vacuum Pads
Lifting Capacity:
300 lbs. (135 kg)
Weight of Vacuum Lifter:
52 lbs. (24 kg)
Standard Operating Power:
120 volts AC, 60 hertz, 3 amps (240 volts AC, 50/60 hertz, 2 amps also available)
Apply / Release Times:
2 seconds / 2 seconds (approx)
Load Movement:
Assisted Manual Tilt, 90° between upright and flat
Standard Features:
Vacuum Gauge
Vacuum Line Filter
Movable Pad Arms
Spring-mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Multiple Handles For Easy Load Positioning
Alternative Power Systems:
DC Power System
Air (venturi) Power System
(Specifications may not be as listed above. Please contact us for more information.)
Available Options:
Vacuum Loss Warning Buzzer (Cat. No. E03VLW)
2″ (51 mm) Pad Spacer (Cat. No. CM3PE2)
Voltage Adaptation (Cat. No. E06VA)
Alternative Frame Dimensions and Capacities
Design Standards:
ASME B30.20-2006
(BTH-1 Design Category “B”, Service Class “0”)
