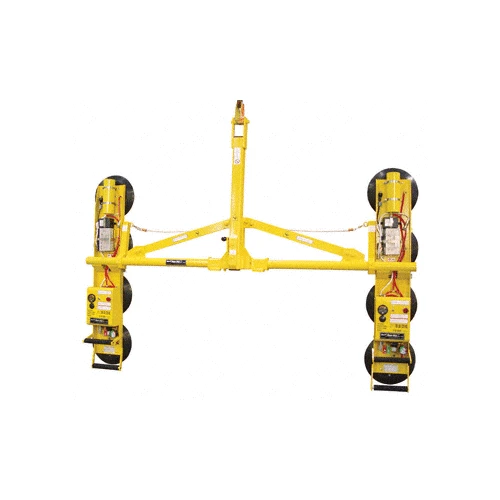

CRL P211047DC Wood’s Powr-Grip DC Model Double Channel 7′ Spread Vacuum Lifting Frame – For Flat Material

Channel Lifters are comprised of one or more Pad Channels and interchangeable Lift Frames for manually rotating and tilting materials. They may be ordered as complete units or as individual components to expand existing Channel Lifter systems. Lift Frames are available in single-channel or double-channel styles. Pad Channels can be switched from one frame to another in minutes.
Standard Pad Spread:
CAT. NO. P211047DC: 51″ x 84-1/4″ (1.30 x 2.14 m)
CAT. NO. P2HV11047DC: 50″ x 83-1/4″ (1.27 x 2.12 m)
Number/Size of Pads:
CAT. NO. P211047DC: 8/11″ (280 m) Diameter Lipped
CAT. NO. P2HV11047DC: 8/10″ (254 mm) Diameter Lipped
Load Capacity:
CAT. NO. P211047DC: 1400 Lbs. (635 kg)
CAT. NO. P2HV11047DC: 1200 Lbs. (545 kg)
(On smooth, non-porous surfaces. Call for recommendations on other surfaces.)
Average Unit Weight: 184 Lbs. (84 kg)
Standard Operating Power:
12V DC, 8 AMP (for each Pad Channel).
Load Movement: Manual rotation, 180 degree edgewise, with locking in three positions. Manual tilt, 90 degree between upright and flat, with automatic latching in upright position. (Units can be tilted ONLY when the lift bar is locked in the center position, as shown in drawings.)
Standard Features:
On-board Battery and Charger
Battery Energy Gauge
Low Vacuum Warning Light
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank
CRL offers large Power Lifting Frames on a week to week rental basis. Customers are responsible for all common carrier freight charges and may require to provide a security deposit. Usage time is based on a one week minimum and begins on the day the frame arrives at the customer. Rental billing ends on the day the frame is shipped back to the originating point. Billing is for full weeks only, no partial weeks. For details, availability and actual pricing please contact CRL Customer Services.
