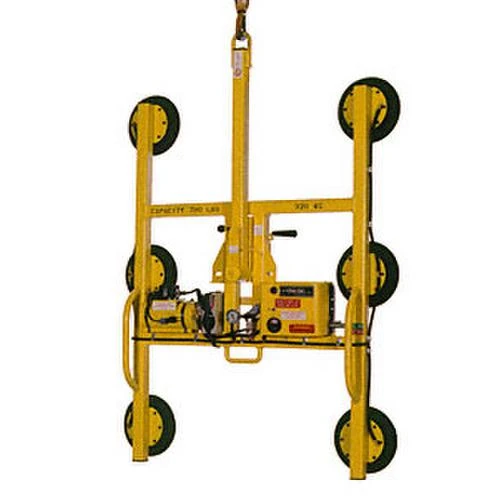

CRL PFV69AC Wood’s PF Series AC Small Vertical 6-Cup Power Frame

CRL PF Series Horizontal Power Frames are designed for use with a crane or other hoisting equipment, PF lifters employ vacuum to hold a load for lifting, and they provide manual 180 degrees rotation and manual 90 degrees tilt movements for load manipulation. A vacuum reservoir helps prevent immediate vacuum loss in case of power failure. Diameter of the six vacuum pads is 9″ (229 mm).
Standard Pad Spread: 57-1/4″ x 46″ (1451 x 1172 mm)
Number/Size of Pads: 6/9″ (229 mm) Diameter
Lifting Capacity: 6 pads – 700 Lbs. (320 kg)
Average Unit Weight: 80 Lbs. (37 kg)
Standard Operating Power: 12V DC, 8 AMP
Load Movement: Manual rotation, 180 degree edgewise, with locking in three positions. Manual tilt, 90 degrees between upright and flat, with automatic latching in upright position.
Standard Features:
On-board Battery and Charger
Battery Energy Gauge
Low Vacuum Warning Light
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank
Spring-mounted Pads
Available Options:

Dual Vacuum System Cat. No. E010DVS

C-Frame Lift Bar Cat. No. LB3CFL

Vacuum Loss Warning Buzzer Cat. No. E03VLW

Individual Pad Shutoffs Cat. No. CM1C0WB

Voltage Adaptation Cat. No. E06VA

Removable Control Pendant Cat. No. E09RP (Available on DC units only).

10″ (254 mm) Diameter Lipped Vacuum Pads Cat. No. HV11

Closed Cell Foam Pad Rings Cat. No. FRHV11 (Available with Cat. No. HV11 Pads only).
