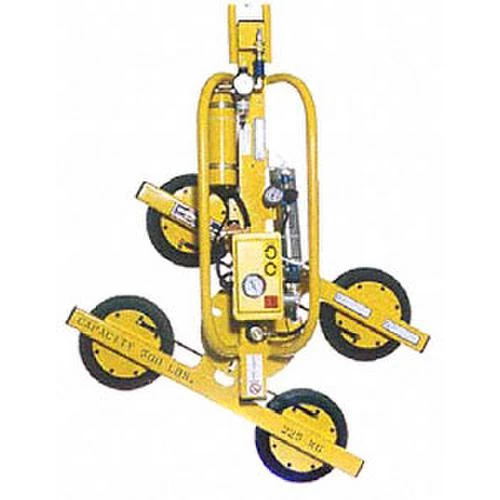

CRL PR411LA1RS Wood’s Powr-Grip Air Powered 700 Series Rotator

Original price was: $353.00.Current price is: $95.99.

SKU: PR411LA1RS Category: Vacuum Lifters Tag: Wood's Powr-Grip

Worry-Free Shopping with Safe Payments
Secure Shopping with Safe Payments
Unbeatable Quality, Unbeatable Value
Hassle-Free Payments

This CRL Wood’s Powr-Grip® Air Powered 700 Series Rotator can complete powered 90 degree rotations, in approximately four seconds, making it ideal for high-output production lines. For special sizes, capacities, and additional information please contact Glass and Glazing Technical Sales.
Standard Pad Spread:
CAT. NO. PR49A1RS: 23-1/2″ x 29-1/2″ (597 x 745 mm)
CAT. NO. PR4HV11A1RS: 25″ x 31″ (636 x 788 mm)
CAT. NO. PR411LA1RS: 26″ x 32″ (661 x 813 mm)
Number/Size of Pads:
CAT. NO. PR49A1RS: 4/9″ (229 mm) Diameter
CAT. NO. PR4HV11A1RS: 4/10″ (254 mm) Diameter Lipped
CAT. NO. PR411LA1RS: 4/11″ (280 mm) Diameter Lipped
Lifting Capacity:
CAT. NO. PR49A1RS: 500 Lbs. (225 kg)
CAT. NO. PR4HV11A1RS: 600 Lbs. (270 kg)
CAT. NO. PR411LA1RS: 700 Lbs. (320 kg)(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Average Unit Weight: 75 Lbs. (34 kg)
Standard Operating Power: Compressed Air, 4.5 SCFM (127 liters/minute) @ 80 psi (552 kPa)
Apply: 3 sec. Release: 3 sec. (approx.)
Load Movement: Power rotation, 90 degree edgewise
Time for 90 Degree Rotation: 4 sec. (approx.)
Rotation Duty: Continuous
Standard Features:
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Blow-off for Quick Release
Adjustable-Position Lift Spool
Available Options:

Vacuum Loss Warning Buzzer
CAT. NO. E03VLW

Individual Pad Shutoffs
CAT. NO. CM1C0WB

Closed Cell Foam Vacuum Pad Rings
CAT. NO. FRHV11 (Available on CAT. NO. PR4HV11A1RS only)

Linear Pad Frame
CAT. NO. CF8LF0

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

F.O.B	Laurel, MT.
Load Movement
Release Time	3 sec. (approx.)
Apply Time	3 sec. (approx.)
Brand	Wood's Powr-Grip
WARNING	This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to http://www.P65Warnings.ca.gov
Lift Capacity	700 Lb (320 kg)
Pad Quantity	4
Lifter Weight - Air Power (Pounds)	700
Pad Diameter	11
Configuration	Rotator Lifter
Pad Spread Size	26 x 32
