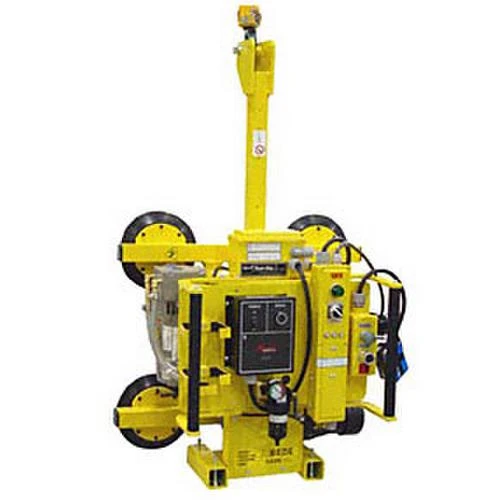

Standard Pad Spread:
CAT. NO. PR49ACS: 29-1/4″ x 29-1/4″ (740 x 740 mm)
CAT. NO. PR4HV11ACS: 31″ x 31″ (788 x 788 mm)
Number/Size of Pads:
CAT. NO. PR49ACS: 4/9″ (229 mm) Diameter
CAT. NO. PR4HV11ACS: 4/10″ (254 mm) Diameter Lipped
Lifting Capacity: 500 Lbs. (225 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Average Unit Weight: 214 Lbs. (98 kg)
Standard Operating Power: 120V AC, 60 Hz, 15 AMP
Apply: 1 sec. Release: 1 sec. (approx.)
Load Movement: Rotation, 360 degree edgewise, with adjustable speed control.
Maximum Rotation Speed: Full turn, 7 sec. (approx.)
Minimum Rotation Speed: Full turn, 30 sec. (approx.)
Standard Features:
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical
Plug Blow-off for Quick Release
Available Options:
CAT. NO. E06VA
CAT. NO. E09RP
CAT. NO. E03VLW
CAT. NO. E01DCB
CAT. NO. CF11F0
CAT. NO. CM1C0WB
CAT. NO. B3CFL
CAT. NO. FRHV11 (available on CAT. NO. PR4HV11ACS only).
For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
