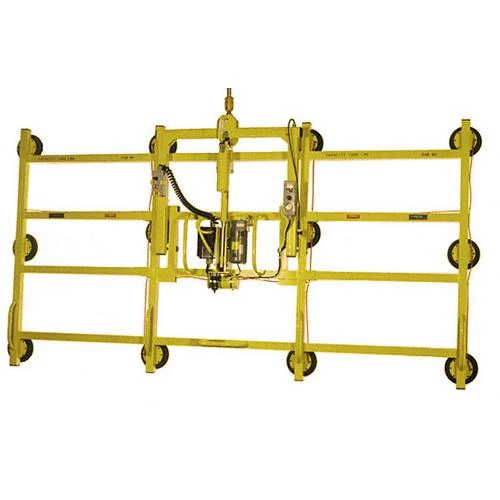

CRL PT129ACS Wood’s Powr-Grip Power Tilter 1200 Series

With powered 90 Degree Tilt and a frame that supplies support across the entire load surface, this CRL Wood’s Powr-Grip® Vacuum Lifter 1200 Series is ideal for handling oversized production materials. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread: 78″ x 154″ (1.98 x 3.91 m)
Number/Size of Pads: 12/9″ (229 mm) Diameter
Lifting Capacity: 1200 Lbs. (545 kg)
Unit Weight: 250 Lbs. (114 kg)
Standard Operating Power: 120V AC, 60 Hz, 12 AMP
Apply: Six sec. Release: Five sec. (approx.)
Load Movement: Power tilt, 90 degrees between upright and flat
Time for 90 Degree Tilt: 12 seconds
Tilt Duty: 27 tilts per hour
Standard Features:
Green Lift Light
Removable Control Pendant
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Available Options:

Voltage Adaptation CAT. NO. E06VA

Vacuum Loss Warning Buzzer CAT. NO. E03VLW

High-duty Tilt with Speed Control CAT. NO. LB1ET0

12V DC Vacuum Back-up System CAT. NO. E01DCB

Individual Pad Shutoffs CAT. NO. CM1C0WB

Movable Pad Mounts CAT. NO. CM2SCM
