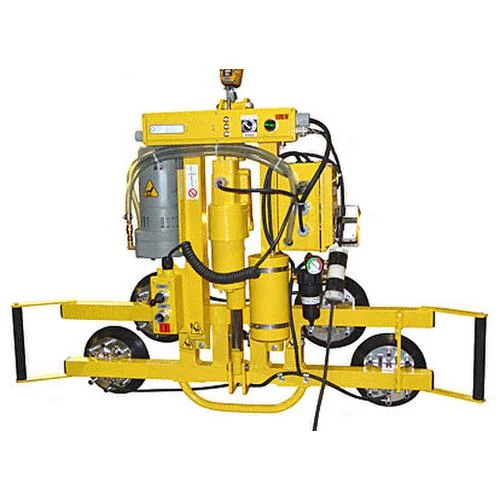

CRL PT410AC Wood’s Powr-Grip Windshield Power Tilter

Concave vacuum pads swivel to accommodate windshields and other curved materials in this CRL Wood’s Powr-Grip® Windshield Power Tilter, originally designed for lifting bullet-proof glass. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread: 17″ x 45-1/2″ (433 x 1157 mm)
Number/Size of Pads: 4/10″ (254 mm) Diameter
Lifting Capacity: 500 Lbs. (227 kg)
Unit Weight: 154 Lbs. (70 kg)
Standard Operating Power: 120V AC, 60 Hz, 10 AMP
Apply: Four sec. Release: Four sec. (approx.)
Load Movement: Power tilt, 90 degrees between upright and flat.
Time for 90 Degree Tilt: Seven seconds
Tilt Duty: 81 Tilts Per Hour
Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Available Options:

Vacuum Loss Warning Buzzer CAT. NO. E03VLW

Individual Pad Shutoffs CAT. NO. CM1C0WB

Voltage Adaptation CAT. NO. E06VA
