CRL PT49ACS Wood’s Powr-Grip Power Tilter 500 Series
Original price was: $359.00.$96.99Current price is: $96.99.
- Worry-Free Shopping with Safe Payments
- Secure Shopping with Safe Payments
- Unbeatable Quality, Unbeatable Value
- Hassle-Free Payments

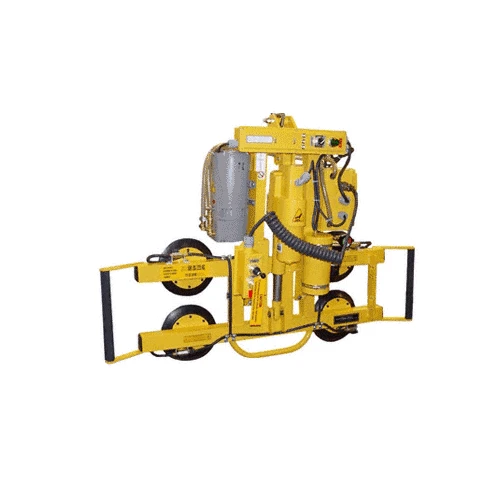

CRL Wood’s Powr-Grip® Power Tilter 500 Series has fast apply and release times and effortless power tilt. This vacuum lifter is ideal for transferring glass or other non-porous materials between vertical storage and horizontal production machinery, as well as many other applications. For special sizes and capacities, please contact our Glass and Glazing Technical Sales Department.
Standard Vacuum Pad Spread: 20-1/2″ x 37-1/2″ (521 x 953 mm)
Number/Size of Vacuum Pads: 4/9″ (229 mm) Diameter Vacuum Pads
Lifting Capacity: 500 Lbs. (227 kg) on smooth non-porous surfaces
Weight of Vacuum Lifter: 168 Lbs. (76 kg)
Standard Operating Power: 120V AC, 60 Hz, 10 Amp
Apply: 1 sec. Release: 1 sec. (approx.)
Load Movement: Power Tilt, 90 degrees between upright and flat
Time for 90 Degree Tilt: 6.5 seconds (approx.)
Tilt Duty: 81 Tilts Per Hour
Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Available Options:Vacuum Loss Warning Buzzer CAT. NO. E03VLW Individual Vacuum pad Shutoffs CAT. NO. CM1C0WB Voltage Adaptation CAT. NO. E06VA
Standard Vacuum Pad Spread: 20-1/2″ x 37-1/2″ (521 x 953 mm)
Number/Size of Vacuum Pads: 4/9″ (229 mm) Diameter Vacuum Pads
Lifting Capacity: 500 Lbs. (227 kg) on smooth non-porous surfaces
Weight of Vacuum Lifter: 168 Lbs. (76 kg)
Standard Operating Power: 120V AC, 60 Hz, 10 Amp
Apply: 1 sec. Release: 1 sec. (approx.)
Load Movement: Power Tilt, 90 degrees between upright and flat
Time for 90 Degree Tilt: 6.5 seconds (approx.)
Tilt Duty: 81 Tilts Per Hour
Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Available Options:
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
| Lifting Capacity | 500 Lbs. (225 kg) |
|---|---|
| Pad Spread Size | 20.5 X 37.5 |
| F.O.B | Laurel, MT. |
| Tilt Duty | |
| Brand | Wood's Powr-Grip |
| WARNING | This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to http://www.P65Warnings.ca.gov |
| Pad Quantity | 4 |
| Load Capacity | 500 |
| Tilt Angle (Degrees) | 90 |
