CRL VLGG109AC 1,200 Lb. Wood’s Powr-Grip Gentle Giant

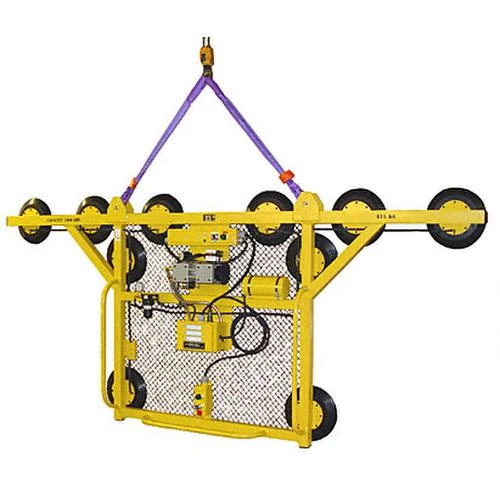

This CRL Wood’s 1,200 Pound Capacity Gentle Giant Vacuum Lifting Frame is designed for vertical lifting of large lights of glass. Overhead cranes or hoists of your supply provide upward and downward movement. This vertical lifter is used when rotation and tilt are not required for load positioning. The ‘T’ shaped frame distributes the lift equally, providing rigidity and stability across the glass surface. Vacuum controls are conveniently mounted on the lower bar assembly for easy access.
Standard Pad Spread:
Cat. No. VLGG109AC: 51″ x 117-1/4″ (1.30 x 2.98 m)
Cat. No. VLGG1011LAC: 53-3/4″ x 120″ (1.37 x 3.05 m)
Number/Size of Pads:
Cat. No. VLGG109AC: 10/9″ (229 mm) Diameter
Cat. No. VLGG1011LAC: 10/11″ (280 mm) Diameter
Load Capacity:
Cat. No. VLGG109AC: 1200 Lbs. (545 kg)
Cat. No. VLGG1011LAC: 1800 Lbs. (815 kg)
Unit Weight:
Cat. No. VLGG109AC: 184 Lbs. (84 kg)
Cat. No. VLGG1011LAC: 190 Lbs. (87 kg)
Standard Operating Power:
120V AC, 50/60 Hertz, 6 AMP
(240V AC, 50/60 Hertz, 3 AMP also available)
Apply/Release:
Cat. No. VLGG109AC: 4 sec./4 sec. (approx)
Cat. No. VLGG1011LAC: 6 sec./4 sec. (approx)
Load Movement: Upright to Upright
Standard Features:
Green Lift Light
Operator Protection Mesh
Removable Control Pendant
Nylon Slings
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-Lock Electrical Plug
Blow-off for Quick Release
Alternative Power Systems
DC Power System
CAT. NO. VLGG109DC
CAT. NO. VLGG1011LDC
Air (Venturi) Power System
CAT. NO. VLGG109A1RS
CAT. NO. VLGG1011LA1RS
Available Options:

Vacuum Loss Warning Buzzer
CAT. NO. E03VLW

12V/DC Vacuum Back-up System
CAT. NO. E01DCB

Individual Pad Shutoffs
CAT. NO. CM1C0WB

Voltage Adaptation
CAT. NO. E06VA
