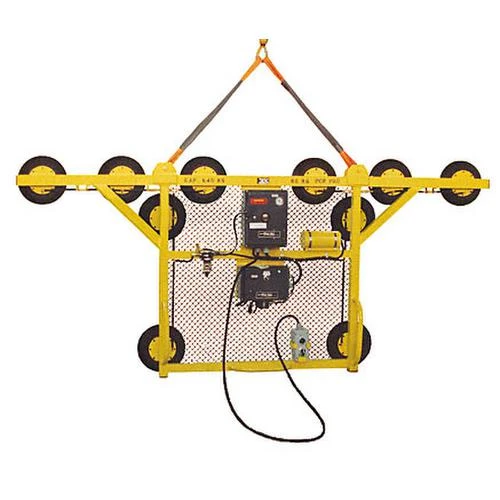

CRL VLGG109DC Wood’s DC 1200 Series Gentle Giant 10 Pad Vacuum Frame – 1200 Lbs.

The Gentle Giants are designed to produce optimum support when handling enormous sheet materials. The T-shaped frame of these vacuum lifters distributes load weight equally, providing rigidity and stability across the material surface. A movable control pendant provides easy access to the vacuum release button when load size requires the vacuum lifter to be higher than the operator.
SPECIFICATIONS:
Standard Vacuum Pad Spread:
51″ x 117-1/4″ (1.29 x 2.98 m)
Number/Size of Vacuum Pads:
10/9″ (229 mm) diameter vacuum pads
Load Capacity:
VLGG109AC – 1200 lbs. (545 kg)
Weight of Vacuum Lifter:
184 lbs. (84 kg)
Standard Operating Power:
120 volts AC, 50/60 hertz, 6 amps (240 volts AC, 50/60 hertz, 3 amps also available)
Apply/Release Times:
4 seconds/4 seconds (approx)
Load Movement:
Upright to upright
Standard Features:
Green lift light
Operator protection mesh
Movable control pendant
Nylon slings
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Twist-lock electrical plug
Blow-off for quick release
Alternative Power Systems:
DC power system
Air (venturi) power system
(Specifications may not be as listed above. Please contact us for more information.)
Available Options:
Vacuum loss warning buzzer
12-Volt/DC vacuum back-up system
Individual vacuum pad shutoffs
Voltage adaptation
Design Standards:
ASME B30.20-2006
(BTH-1 Design Category “B”, Service Class “0”)
