Wood’s Powr-Grip MT8HV11FA1R Air Powered Manual Stone Tilter 1200 Series

Original price was: $324.00.Current price is: $96.99.

SKU: MT8HV11FA1R Category: Vacuum Lifters Tag: Wood's Powr-Grip

Worry-Free Shopping with Safe Payments
Secure Shopping with Safe Payments
Unbeatable Quality, Unbeatable Value
Hassle-Free Payments

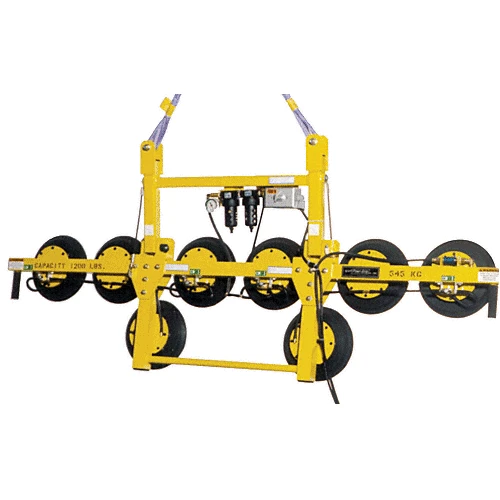

Designed to fit between tight, vertical storage racks, this CRL Wood’s Powr-Grip® DC Powered Manual Stone Tilter 1200 Series can handle stone and other high density material with rough surfaces or irregular shapes. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread: 21″ x 77″ (532 mm x 1.96 m)
Number/Size of Pads: 8/10″ (254 mm) Diameter Lipped
Lifting Capacity: 1,200 Lbs. (545 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces).
Unit Weight without Power System: 104 Lbs. (48 kg)
Load Movement: Manual tilt, 90 degree between upright and flat.
Standard features:
Individual Shutoffs to all Pads
Closed Cell Foam Pad Rings
Spring-Mounted Pads
Vacuum Gauge
Vacuum Line Filter
Nylon Slings
Available Options:

Vacuum Loss Warning Buzzer Cat. No. E03VLW

Flat Lift Adapter Cat. No. CF4FLA0

Center Spool Lift Bar Cat. No. LB4CS0

Vacuum Package Mounting Bar Cat. No. LB5MB0

Voltage Adaptation Cat. No. E06VA

Green Lift Light Cat. No. E02GSL (Available on DC units only)

Removable Control Pendant Cat. No. E09RP (Available on DC units only)

Alternative Frame Dimensions and Configurations

Frame Mounted AC or DC Power System

Lifting Capacity	1200 Lbs. (545 kg)
Pad Spread Size	21" x 77" (532 x 1956 mm)
Standard Pad Spread	21" x 77" (532 x 1956 mm)
F.O.B	Laurel, MT.
Load Movement
Brand	Wood's Powr-Grip
WARNING	This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to http://www.P65Warnings.ca.gov
Type	Air
